STA[X] TIGHT SPACE – KIT SOLUTION:
Everyone knows UV-C works, but most systems on the market just aren’t built for tight spaces. And the ones that do fit? They require painstaking customization, extra labor, and custom parts. We knew there had to be a better way – so we built one.
KEY BENEFITS:

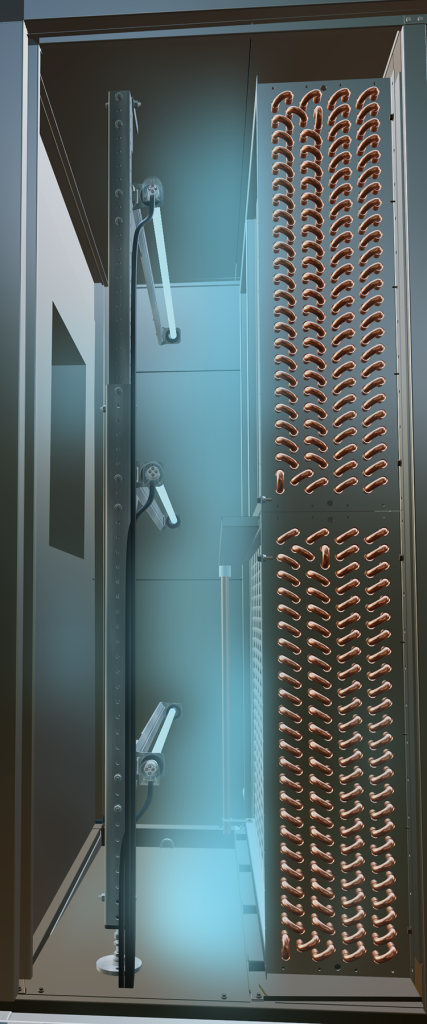

BUILT FOR COMPACT HVAC EQUIPMENT: Its low-profile design fits inside small air handlers, rooftop units, ducts, and other mechanical equipment where traditional UV-C fixtures simply cannot.
WORKS AROUND REAL-WORLD OBSTACLES: Telescoping supports and flexible mounting adapt around piping, coils, drain pans, wiring, and other components already inside the unit.
HIGH OUTPUT. SMALL FOOTPRINT: STA[X] delivers very high-output UV-C performance while preserving valuable space inside the HVAC cabinet.
FAST TO INSTALL. EASIER TO SERVICE: Simplified mounting, accessible components, and waterproof lamp connections make installation, inspection, and lamp replacement more manageable in cramped interiors.

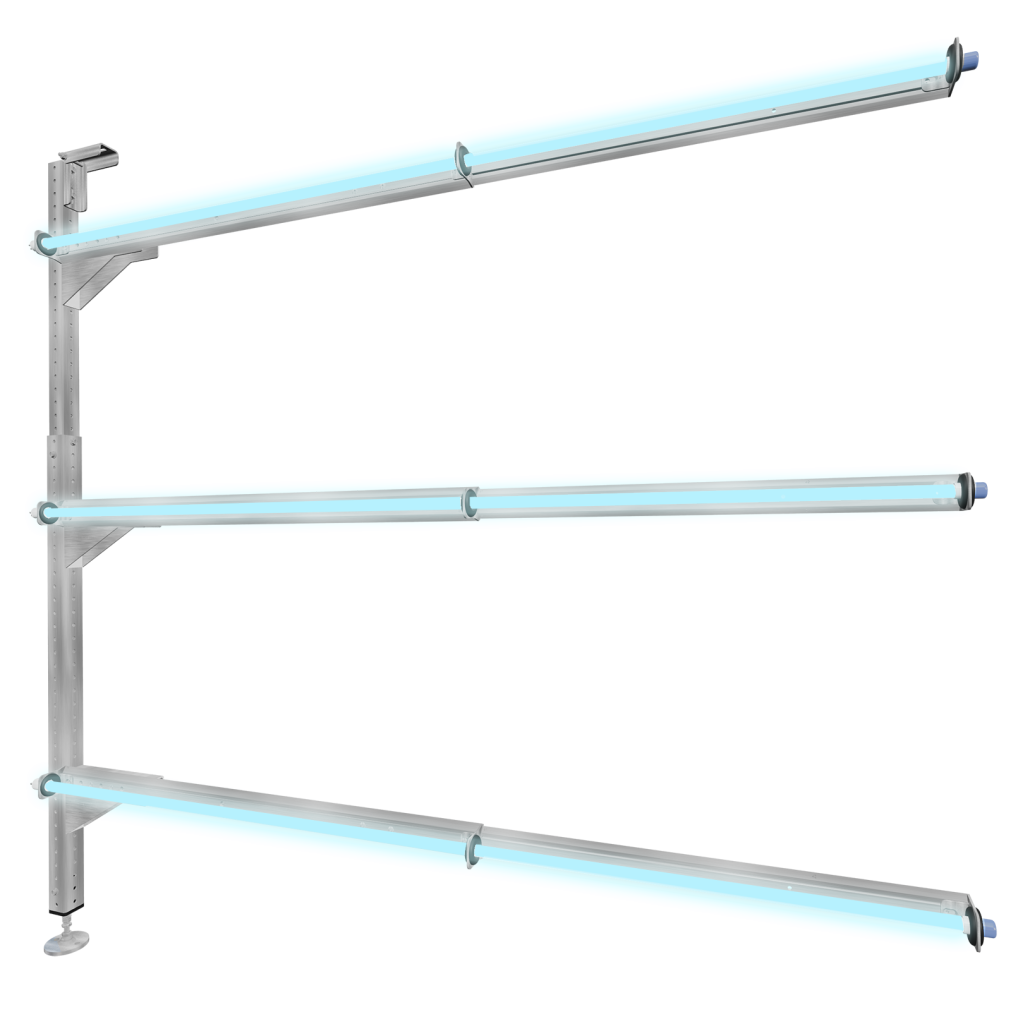

STA[X] FRAMING KIT
Everything needed to mount STA[X] quickly and securely inside compact HVAC equipment. The adjustable mast and lamp supports are designed to work around real-world obstructions, and every STA[X] kit includes the installation tool needed to make setup faster and easier.

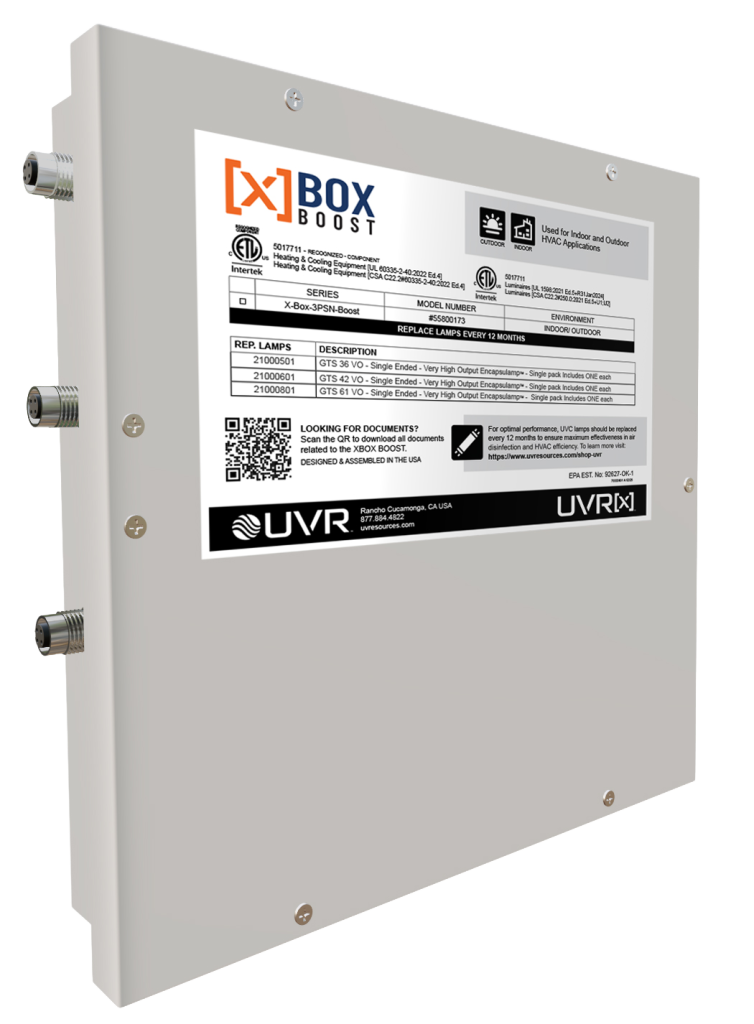

[X]BOX BOOST
The compact control package that powers STA[X]. XBOX BOOST arrives ready to install with the required cables, lamp connections, and control hardware included, helping eliminate field sourcing and simplify final system hookup.
STAX [X} – FEATURES TO FIT. ENGINEERED TO ADAPT.

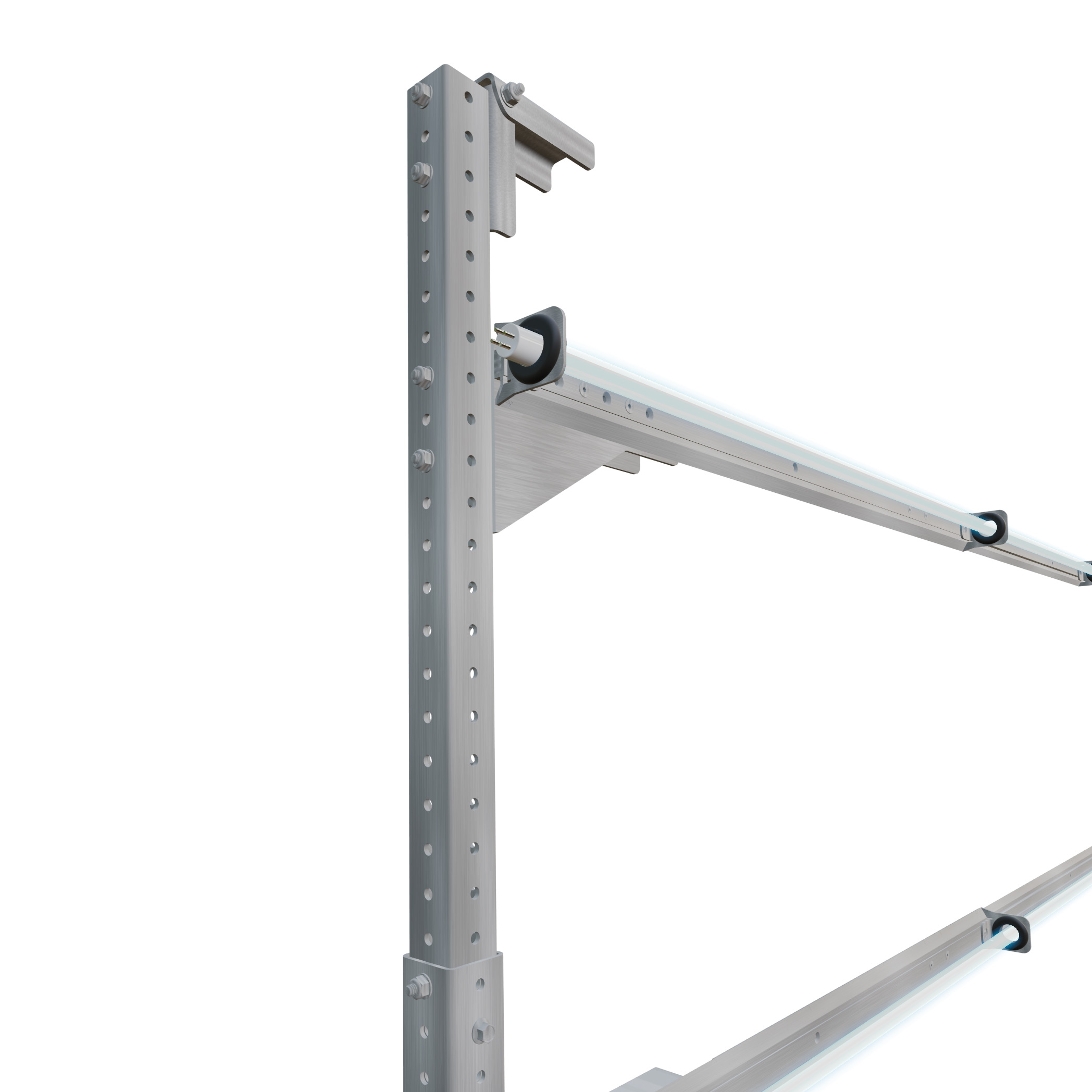

ADJUSTABLE MAST
Telescopes to fit varying unit heights.

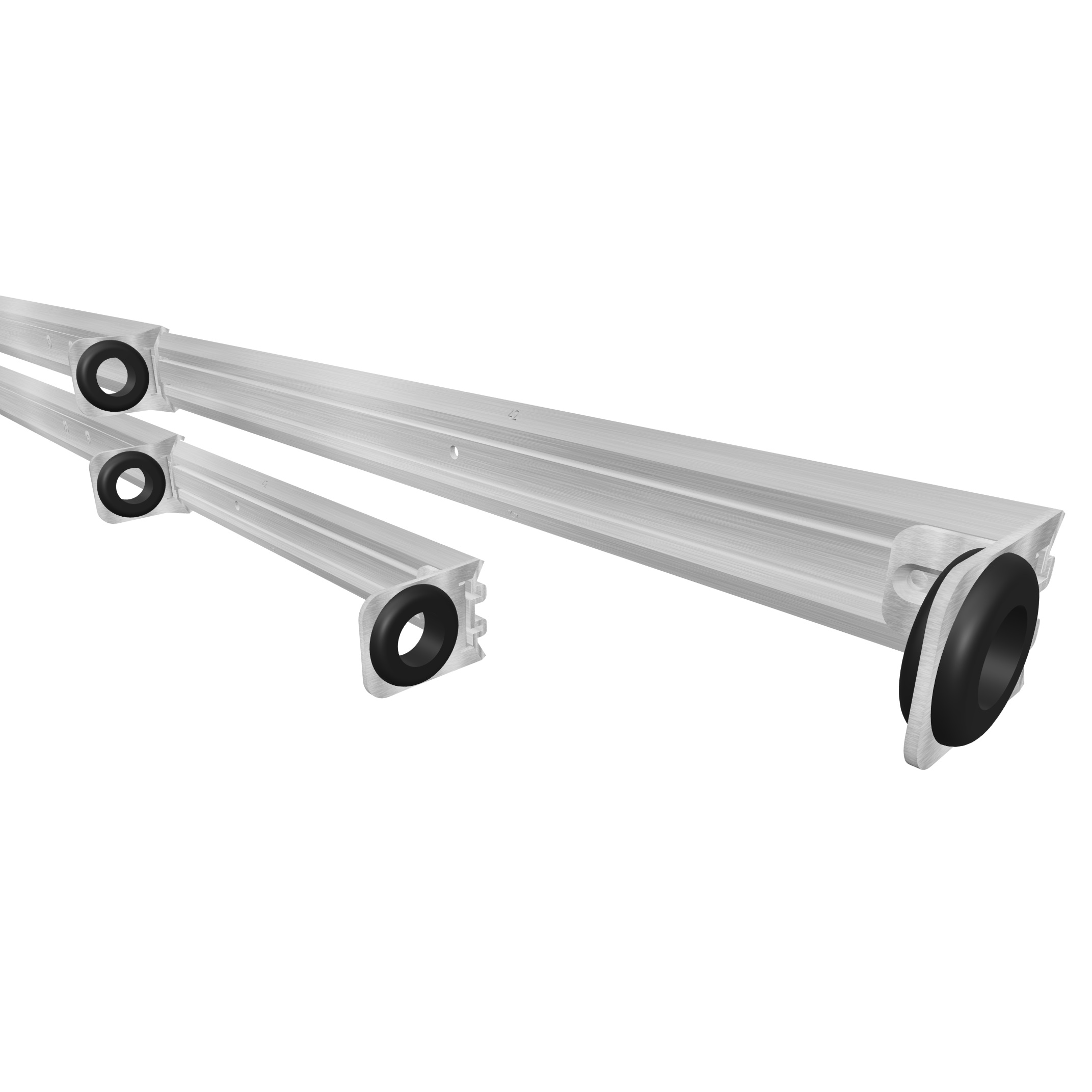

EXTENDABLE ARMS
Position lamps for complete coil coverage.

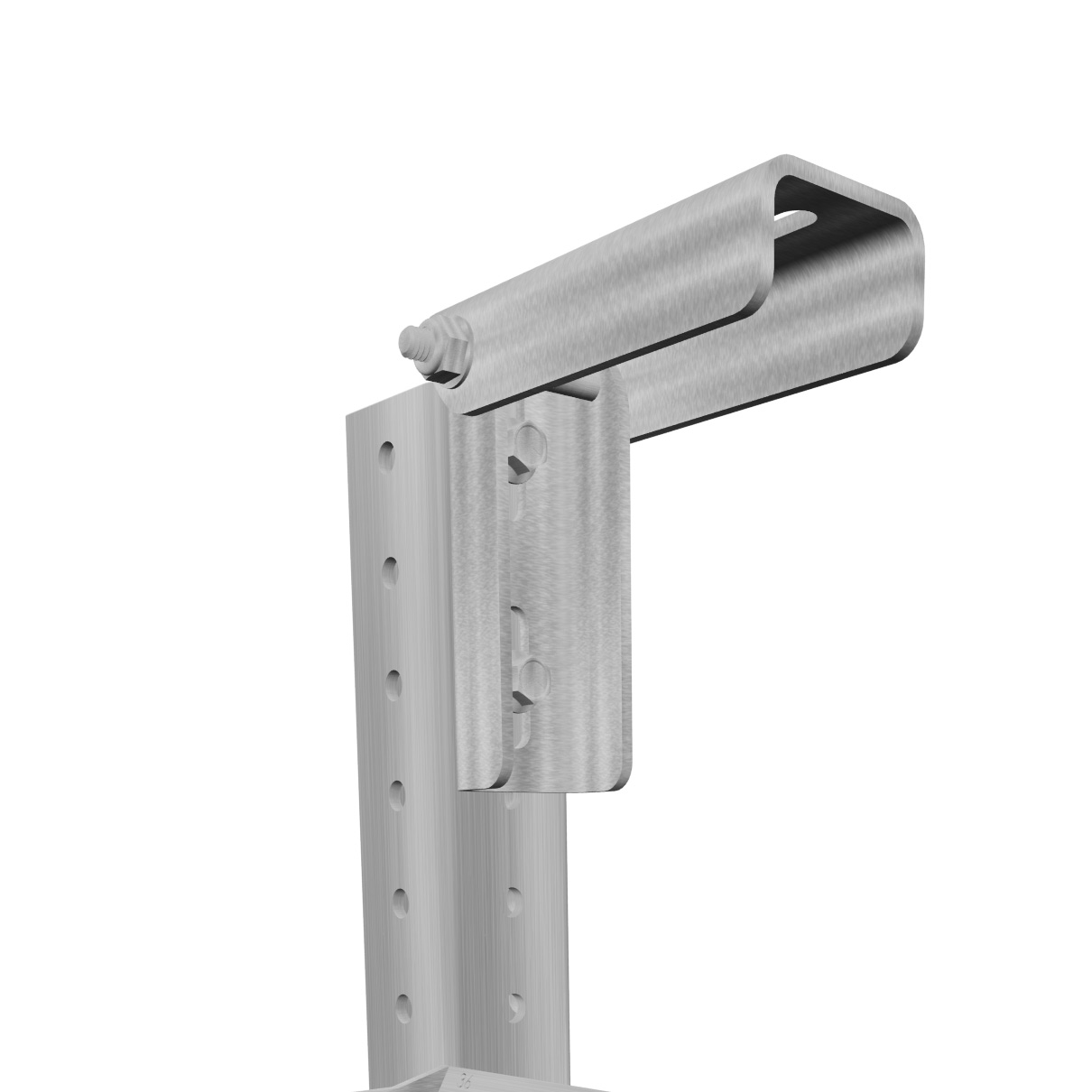

TOP ANCHOR
Pivots into place for a secure fit.

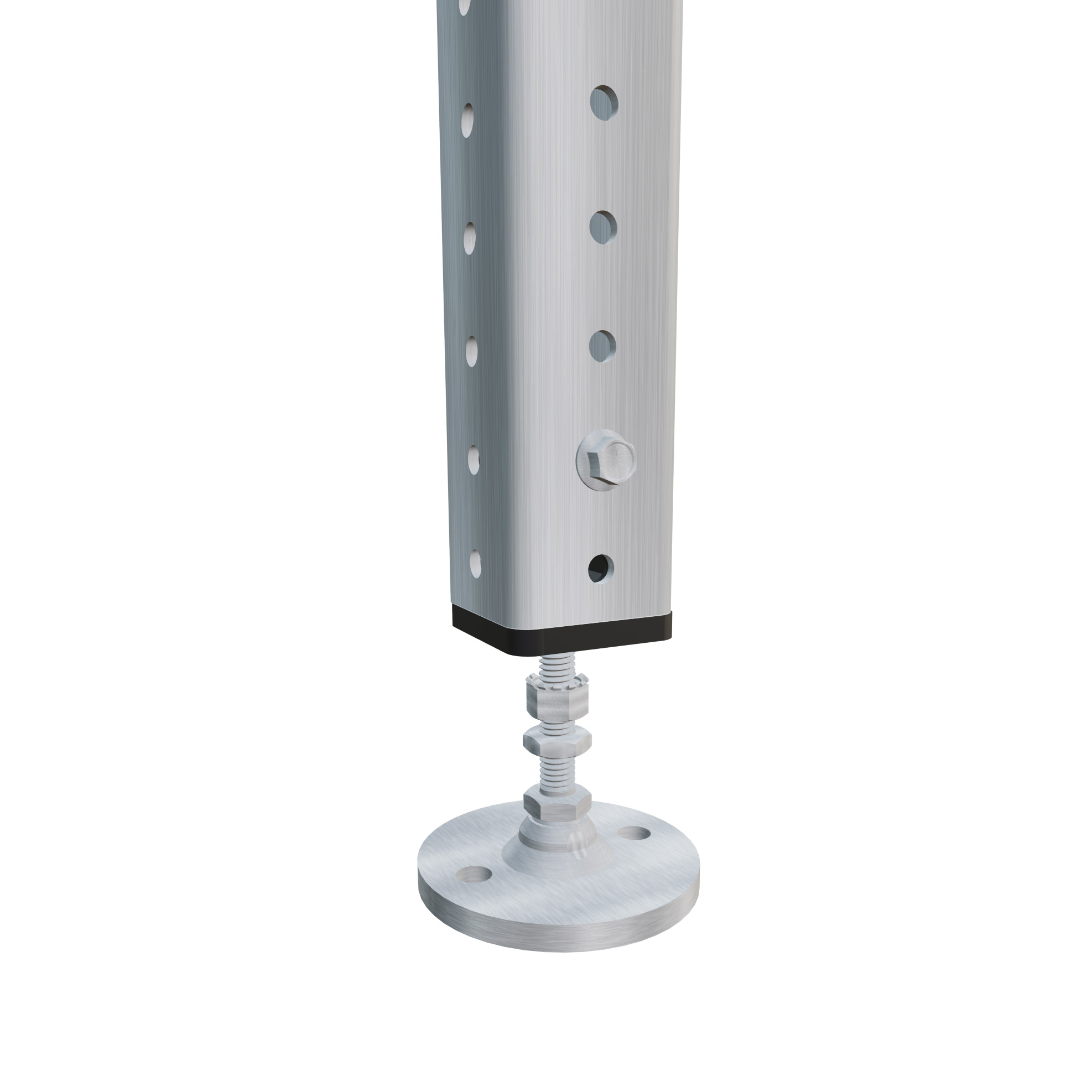

ADJUSTABLE FOOT
Easy leveling and height adjistments.

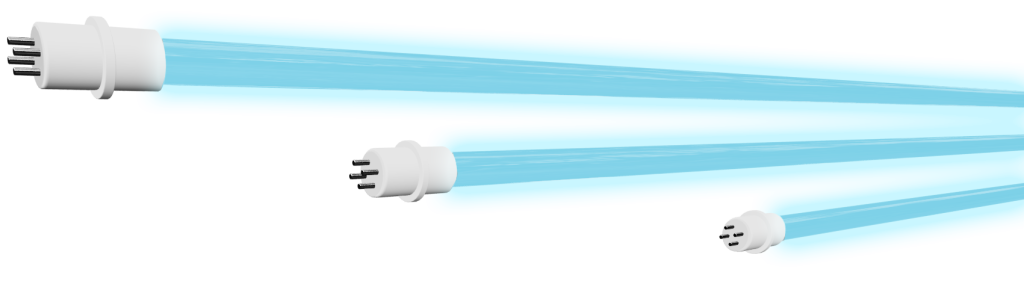

LAMPS SCALABLE TO THE APPLICATION:
The system configures to match the unit size and required coil coverage, supporting 31- to 61-inch lamps and up to three very high-output lamps.
SEE OUR LAMPS
RAPID TRAINING
TRAINING MADE SIMPLE
STA[X] training is designed to get technicians comfortable with the system quickly, without turning installation into a classroom exercise. Clear, focused resources walk installers through the framing system, lamp positioning, connections, and XBOX BOOST setup in an easy-to-follow sequence.
For technicians who just need a quick refresher in the field, the 90-second installation video provides a fast visual walkthrough of the process. More detailed Quick Start and technical installation guides are also available when additional instruction or reference is needed.
AVERAGE INSTALL TIME: UNDER 4 HOURS

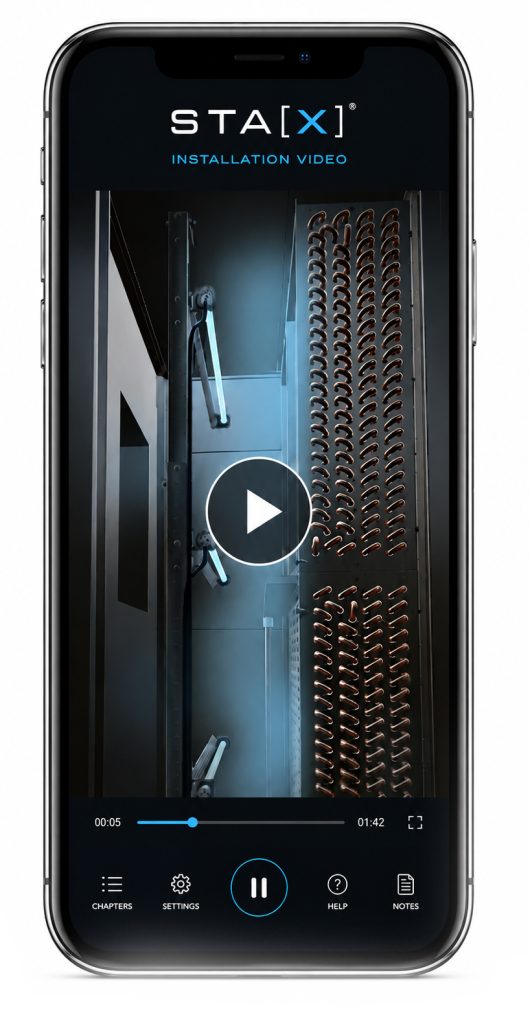

Need the speed-dating version? The 90-second STA[X] Installation Video
gives you the setup at a glance, from framing and lamp placement to final connection.
TRAINING RESOURCES
⬇ STA[X] QUICK START GUIDE
⬇ STA[X] IOM / TECHNICAL INSTALLATION
⬇ BOOST TECHNICAL GUIDE
KNOW BEFORE YOU GLOW: Quickly confirm whether STA[X] fits your application – and if it doesn’t, get a recommendation for another UV-C solution that will.
RESULTS
PLENUM HEIGHT: 58″
PLENUM WIDTH: 64″
PLENUM DEPTH: 21″
NO.OF LAMPS: 3
CURRENT ELECTRICAL: 220V
PLENUM FLOOR: DRAINPAN
STA[X] RECOMMENDATION
STA[X] KIT: (1) 100912211
XBOX BOOST KIT: (1) 900217771
ADDITIONAL ITEMS: N/A
LAMPS: (3) 90012231 SEL 61″ Single Ended- High Output EncapsuLamp
